หมวดหมู่สินค้า: อะแดปเตอร์ข้อต่อไฮดรอลิก SAE
วัสดุ: เหล็กกล้าคาร์บอน, สแตนเลสหรือโลหะผสมทองแดง

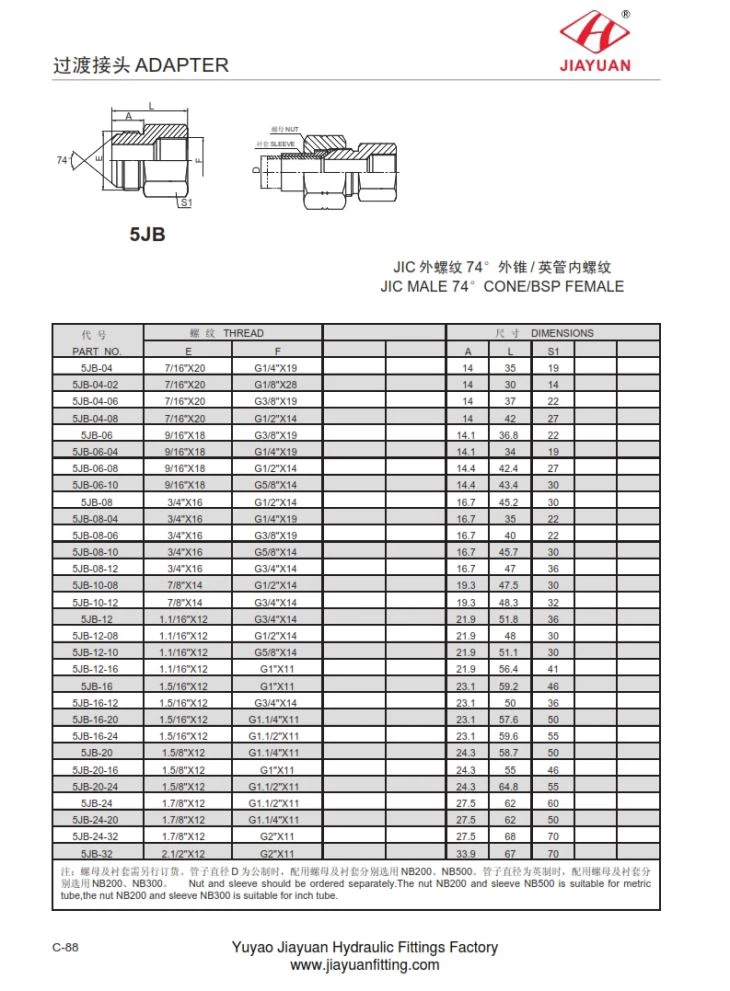

5JB JIC ชาย 74 ° CONE / BSP FEMALE แผนภูมิขนาดดังต่อไปนี้:
พาร์ ไม่ใช่ | THREA D | มิติ | |||||
E | F |
| L | S 1 | |||
5JB-0 4 | 7/16 "X2 0 | G1 / 4 "X1 9 | 1 4 | 3 5 | 1 9 | ||
5JB-04-0 2 | 7/16 "X2 0 | G1 / 8 "X2 8 | 1 4 | 3 0 | 1 4 | ||
5JB-04-0 6 | 7/16 "X2 0 | G3 / 8 "X1 9 | 1 4 | 3 7 | 2 2 | ||
5JB-04-0 8 | 7/16 "X2 0 | G1 / 2 "X1 4 | 1 4 | 4 2 | 2 7 | ||
5JB-0 6 | 9/16 "X1 8 | G3 / 8 "X1 9 | 14. 1 | 36. 8 | 2 2 | ||
5JB-06-0 4 | 9/16 "X1 8 | G1 / 4 "X1 9 | 14. 1 | 3 4 | 1 9 | ||
5JB-06-0 8 | 9/16 "X1 8 | G1 / 2 "X1 4 | 14. 4 | 42. 4 | 2 7 | ||
5JB-06-1 0 | 9/16 "X1 8 | G5 / 8 "X1 4 | 14. 4 | 43. 4 | 3 0 | ||
5JB-0 8 | 3/4 "X1 6 | G1 / 2 "X1 4 | 16. 7 | 45. 2 | 3 0 | ||
5JB-08-04 | 3/4 "X1 6 | G1 / 4 "X1 9 | 16. 7 | 3 5 | 2 2 | ||
5JB-08-06 | 3/4 "X1 6 | G3 / 8 "X1 9 | 16. 7 | 4 0 | 2 2 | ||
5JB-08-1 0 | 3/4 "X1 6 | G5 / 8 "X1 4 | 16. 7 | 45. 7 | 3 0 | ||
5JB-08-1 2 | 3/4 "X1 6 | G3 / 4 "X1 4 | 16. 7 | 4 7 | 3 6 | ||
5JB-10-0 8 | 7/8 "X1 4 | G1 / 2 "X1 4 | 19. 3 | 47. 5 | 3 0 | ||
5JB-10-1 2 | 7/8 "X1 4 | G3 / 4 "X1 4 | 19. 3 | 48. 3 | 3 2 | ||
5JB-1 2 | 1.1 / 16 "X1 2 | G3 / 4 "X1 4 | 21. 9 | 51. 8 | 3 6 | ||
5JB-12-0 8 | 1.1 / 16 "X1 2 | G1 / 2 "X1 4 | 21. 9 | 4 8 | 3 0 | ||
5JB-12-1 0 | 1.1 / 16 "X1 2 | G5 / 8 "X1 4 | 21. 9 | 51. 1 | 3 0 | ||
5JB-12-1 6 | 1.1 / 16 "X1 2 | G1 "X1 1 | 21. 9 | 56. 4 | 4 1 | ||
5JB-1 6 | 1.5 / 16 "X1 2 | G1 "X1 1 | 23. 1 | 59. 2 | 4 6 | ||
5JB-16-1 2 | 1.5 / 16 "X1 2 | G3 / 4 "X1 4 | 23. 1 | 5 0 | 3 6 | ||
5JB-16-2 0 | 1.5 / 16 "X1 2 | G1.1 / 4 "X1 1 | 23. 1 | 57. 6 | 5 0 | ||
5JB-16-2 4 | 1.5 / 16 "X1 2 | G1.1 / 2 "X1 1 | 23. 1 | 59. 6 | 5 5 | ||
5JB-2 0 | 1.5 / 8 "X1 2 | G1.1 / 4 "X1 1 | 24. 3 | 58. 7 | 5 0 | ||
5JB-20-1 6 | 1.5 / 8 "X1 2 | G1 "X1 1 | 24. 3 | 5 5 | 4 6 | ||
5JB-20-2 4 | 1.5 / 8 "X1 2 | G1.1 / 2 "X1 1 | 24. 3 | 64. 8 | 5 5 | ||
5JB-2 4 | 1.7 / 8 "X1 2 | G1.1 / 2 "X1 1 | 27. 5 | 6 2 | 6 0 | ||
5JB-24-2 0 | 1.7 / 8 "X1 2 | G1.1 / 4 "X1 1 | 27. 5 | 6 2 | 5 0 | ||
5JB-24-3 2 | 1.7 / 8 "X1 2 | G2 "X1 1 | 27. 5 | 6 8 | 7 0 | ||
