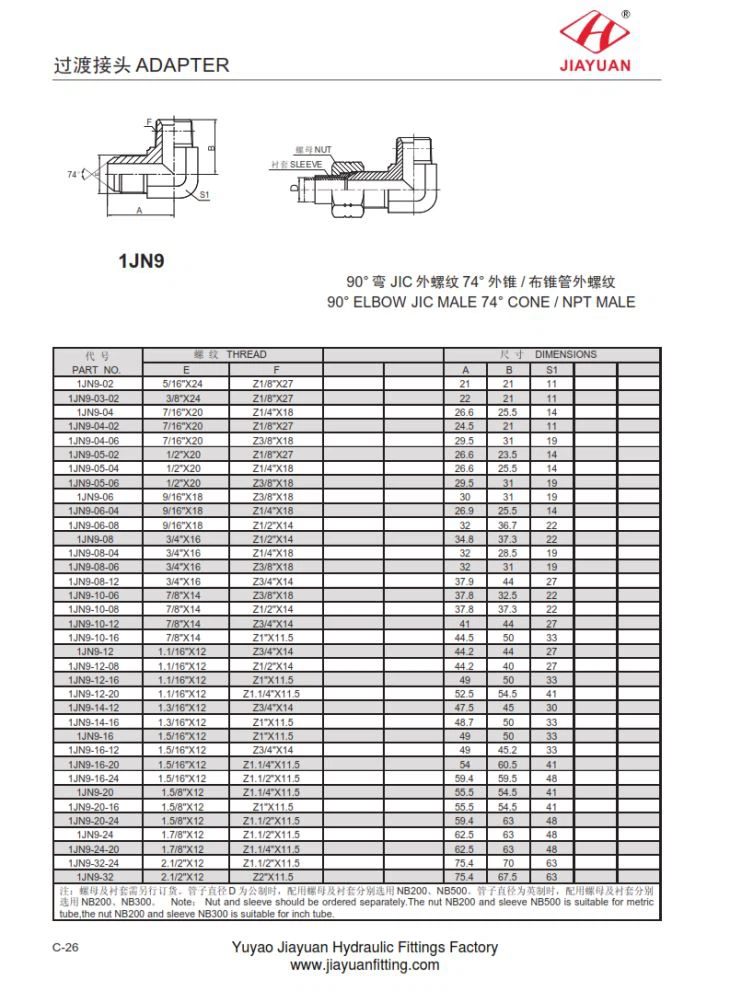

ข้อต่อ JIC NPT ของ Elbow ชาย

E

F

B

S1

1 J N9 - 02

5/16 " X 24

Z1 / 8 " X 27

21

21

11

1 J N9 - 03 - 02

3/8 " X 24

Z1 / 8 " X 27

22

21

11

1 J N9 - 04

7/16 " X 20

Z1 / 4 " X 18

26.6

25.5

14

1 J N9 - 04 - 02

7/16 " X 20

Z1 / 8 " X 27

24.5

21

11

1 J N9 - 04 - 06

7/16 " X 20

Z3 / 8 " X 18

29.5

วันที่ 31

19

1 J N9 - 05 - 02

1/2 " X 20

Z1 / 8 " X 27

26.6

23.5

14

1 J N9 - 05 - 04

1/2 " X 20

Z1 / 4 " X 18

26.6

25.5

14

1 J N9 - 05 - 06

1/2 " X 20

Z3 / 8 " X 18

29.5

วันที่ 31

19

1 J N9 - 06

9/16 " X 18

Z3 / 8 " X 18

30

วันที่ 31

19

1 J N9 - 06 - 04

9/16 " X 18

Z1 / 4 " X 18

26.9

25.5

14

1 J N9 - 06 - 08

9/16 " X 18

Z1 / 2 " X 14

32

36.7

22

1 J N9 - 08

3/4 " X 16

Z1 / 2 " X 14

34.8

37.3

22

1 J N9 - 08 - 04

3/4 " X 16

Z1 / 4 " X 18

32

28.5

19

1 J N9 - 08 - 06

3/4 " X 16

Z3 / 8 " X 18

32

วันที่ 31

19

1 J N9 - 08 - 12

3/4 " X 16

Z3 / 4 " X 14

37.9

44

27

1 J N9 - 10 - 06

7/8 " X 14

Z3 / 8 " X 18

37.8

32.5

22

1 J N9 - 10 - 08

7/8 " X 14

Z1 / 2 " X 14

37.8

37.3

22

1 J N9 - 10 - 12

7/8 " X 14

Z3 / 4 " X 14

41

44

27

1 J N9 - 10 - 16

7/8 " X 14

Z1 " X 11.5

44.5

50

33

1 J N9 - 12

1.1 / 16 " X 12

Z3 / 4 " X 14

44.2

44

27

1 J N9 - 12 - 08

1.1 / 16 " X 12

Z1 / 2 " X 14

44.2

40

27

1 J N9 - 12 - 16

1.1 / 16 " X 12

Z1 " X 11.5

49

50

33

1 J N9 - 12 - 20

1.1 / 16 " X 12

Z1.1 / 4 " X 11.5

52.5

54.5

41

1 J N9 - 14 - 12

1.3 / 16 " X 12

Z3 / 4 " X 14

47.5

45

30

1 J N9 - 14 - 16

1.3 / 16 " X 12

Z1 " X 11.5

48.7

50

33

1 J N9 - 16

1.5 / 16 " X 12

Z1 " X 11.5

49

50

33

1 J N9 - 16 - 12

1.5 / 16 " X 12

Z3 / 4 " X 14

49

45.2

33

1 J N9 - 16 - 20

1.5 / 16 " X 12

Z1.1 / 4 " X 11.5

54

60.5

41

1 J N9 - 16 - 24

1.5 / 16 " X 12

Z1.1 / 2 " X 11.5

59.4

59.5

48

1 J N9 - 20

1.5 / 8 " X 12

Z1.1 / 4 " X 11.5

55.5

54.5

41

1 J N9 - 20 - 16

1.5 / 8 " X 12

Z1 " X 11.5

55.5

54.5

41

1 J N9 - 20 - 24

1.5 / 8 " X 12

Z1.1 / 2 " X 11.5

59.4

63

48

1 J N9 - 24

1.7 / 8 " X 12

Z1.1 / 2 " X 11.5

62.5

63

48

1 J N9 - 24 - 20

1.7 / 8 " X 12

Z1.1 / 4 " X 11.5

62.5

63

48

1 J N9 - 32 - 24

2.1 / 2 " X 12

Z1.1 / 2 " X 11.5

75.4

70

63

1 J N9 - 32

2.1 / 2 " X 12

Z2 " X 11.5

75.4

67.5

63

D   NB 20 0   NB 50 0
