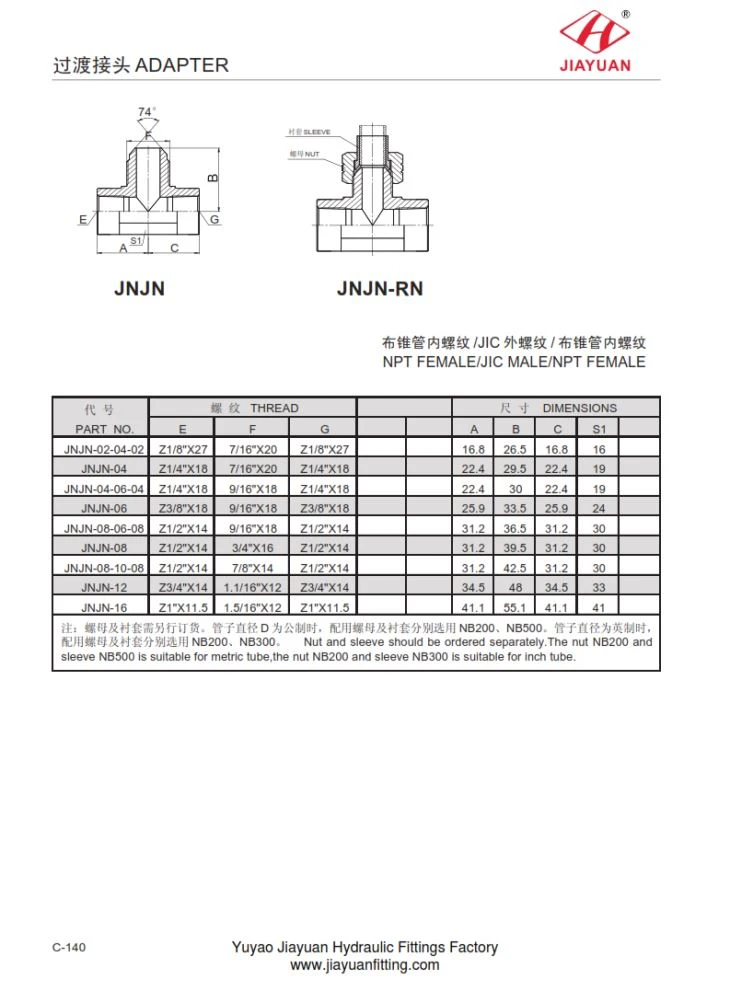

แผนภูมิขนาด JNJN-RN NPT FEMALE / JIC MALE / NPT FEMALE ได้แก่ :
พาร์ ไม่ใช่ | THREA D | มิติ | |||||
E | F | G |
| B | C | S 1 | |
JNJN-02-04-0 2 | Z1 / 8 "X2 7 | 7/16 "X2 0 | Z1 / 8 "X2 7 | 16. 8 | 26. 5 | 16. 8 | 1 6 |
JNJN-0 4 | Z1 / 4 "X1 8 | 7/16 "X2 0 | Z1 / 4 "X1 8 | 22. 4 | 29. 5 | 22. 4 | 1 9 |
JNJN-04-06-0 4 | Z1 / 4 "X1 8 | 9/16 "X1 8 | Z1 / 4 "X1 8 | 22. 4 | 3 0 | 22. 4 | 1 9 |
JNJN-0 6 | Z3 / 8 "X1 8 | 9/16 "X1 8 | Z3 / 8 "X1 8 | 25. 9 | 33. 5 | 25. 9 | 2 4 |
JNJN-08-06-0 8 | Z1 / 2 "X1 4 | 9/16 "X1 8 | Z1 / 2 "X1 4 | 31. 2 | 36. 5 | 31. 2 | 3 0 |
JNJN-0 8 | Z1 / 2 "X1 4 | 3/4 "X1 6 | Z1 / 2 "X1 4 | 31. 2 | 39. 5 | 31. 2 | 3 0 |
JNJN-08-10-0 8 | Z1 / 2 "X1 4 | 7/8 "X1 4 | Z1 / 2 "X1 4 | 31. 2 | 42. 5 | 31. 2 | 3 0 |
JNJN-1 2 | Z3 / 4 "X1 4 | 1.1 / 16 "X1 2 | Z3 / 4 "X1 4 | 34. 5 | 4 8 | 34. 5 | 3 3 |
JNJN-1 6 | Z1 "X11. 5 | 1.5 / 16 "X1 2 | Z1 "X11. 5 | 41. 1 | 55. 1 | 41. 1 | 4 1 |
